24mm T1.5 Full Frame Wide Angle VDSLR MK2 Cine
24mm T1.5 Full Frame Wide Angle VDSLR MK2 Cine
24mm T1.5 Full Frame Wide Angle VDSLR MK2 Cine
24mm T1.5 Full Frame Wide Angle VDSLR MK2 Cine
24mm T1.5 Full Frame Wide Angle VDSLR MK2 Cine
24mm T1.5 Full Frame Wide Angle VDSLR MK2 Cine

24mm T1.5 Full Frame Wide Angle VDSLR MK2 Cine

SYDSX24-C

Regular price$749.00
/
Shipping calculated at checkout.
Mount

Model: SYDSX24-C

UPC: 0-84438-76674-5

Focal Length: 24mm

Maximum Aperture: T1.5

Angle of View: Full Frame (FX) 84.1˚ / Super 35 65.3˚ / APS-C 61.3˚ / Canon APS-C 58.0˚ / MFT 47.6˚

Optical Construction: 13 Elements in 12 Groups

Aperture Range: T1.5 to T22

Diaphragm Blades: 9

Coating: Ultra Multi-Coating (UMC)

Minimum Focusing Distance: 9.84" (250mm)

Filter Size: 77mm

Lens Hood: Removable Petal Shaped

Maximum Diameter: 3.31" (84mm)

Weight: 21.0oz (598g)

Length: 3.82" (97.1mm)

Model: SYDSX24-RF

UPC: 0-84438-76696-7

Focal Length: 24mm

Maximum Aperture: T1.5

Angle of View: Full Frame (FX) 84.1˚ / Super 35 65.3˚ / APS-C 61.3˚ / Canon APS-C 58.0˚ / MFT 47.6˚

Optical Construction: 13 Elements in 12 Groups

Aperture Range: T1.5 to T22

Diaphragm Blades: 9

Coating: Ultra Multi-Coating (UMC)

Minimum Focusing Distance: 9.84" (250mm)

Filter Size: 77mm

Lens Hood: Removable Petal Shaped

Maximum Diameter: 3.31" (84mm)

Weight: 23.4oz (663g)

Length: 4.77" (121.1mm)

Model: SYDSX24-MFT

UPC: 0-84438-76676-9

Focal Length: 24mm

Maximum Aperture: T1.5

Angle of View: Full Frame (FX) 84.1˚ / Super 35 65.3˚ / APS-C 61.3˚ / Canon APS-C 58.0˚ / MFT 47.6˚

Optical Construction: 13 Elements in 12 Groups

Aperture Range: T1.5 to T22

Diaphragm Blades: 9

Coating: Ultra Multi-Coating (UMC)

Minimum Focusing Distance: 9.84" (250mm)

Filter Size: 77mm

Lens Hood: Removable Petal Shaped

Maximum Diameter: 3.31" (84mm)

Weight: 22.4oz (636g)

Length: 4.80" (121.9mm)

Model: SYDSX24-E

UPC: 0-84438-76675-2

Focal Length: 24mm

Maximum Aperture: T1.5

Angle of View: Full Frame (FX) 84.1˚ / Super 35 65.3˚ / APS-C 61.3˚ / Canon APS-C 58.0˚ / MFT 47.6˚

Optical Construction: 13 Elements in 12 Groups

Aperture Range: T1.5 to T22

Diaphragm Blades: 9

Coating: Ultra Multi-Coating (UMC)

Minimum Focusing Distance: 9.84" (250mm)

Filter Size: 77mm

Lens Hood: Removable Petal Shaped

Maximum Diameter: 3.31" (84mm)

Weight: 22.9oz (649g)

Length: 4.85" (123.1mm)

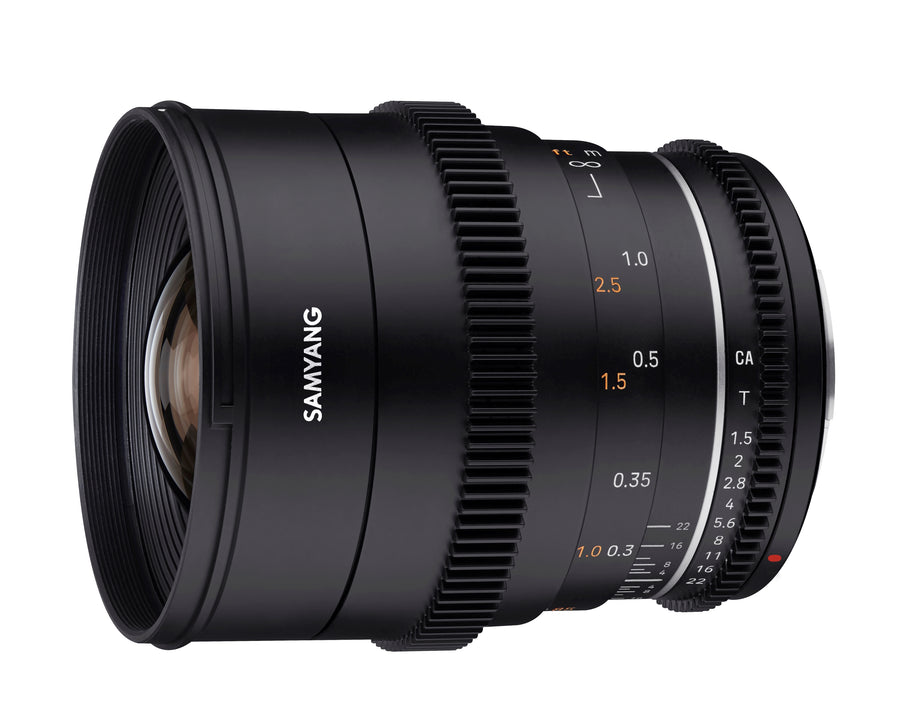

※ This product image is a Canon EF mount lens. Size and design may vary depending on the mount of a lens

Boasting a new compact and sleek design with matte black finish, Samyang VDSLR MK2 lenses offer additional welcome features including a rounded nine blade aperture for even smoother circular bokeh.

Lens mounts are now weather sealed, and VDSLR MK2 lenses are even available in Canon RF mount. In addition, VDSLR MK2 lenses are fully compatible in terms of color rendition and gear placement with Samyang VDSLR Cine lenses.

With full frame coverage, fast apertures, and optical designs utilizing special elements, MK2 lenses support the increased capabilities of the latest DSLR, Mirrorless, Cine camera systems, and drones. Samyang VDSLR MK2 lenses are the perfect choice for independent filmmakers, project directors, and professional cinematographers.

Samyang CINE LENS FEATURES

  • Calibration in T-stops
  • Tight color matching
  • Silky smooth long focus throws for precise focus control
  • Non-rotating front designs facilitates easy use of filters, polarizers, and hoods
  • Apertures are de-clicked for precise, smooth and silent operation
  • Left and right side focusing and aperture scales let you work from either side
  • Industry standard 0.8MOD gearing with uniform MK2 and VDSLR series focus and aperture gear placement enable fast lens changes when using follow focus devices
  • High Refractive Index, Extra Low Dispersion, Aspherical and Hybrid Aspherical elements are utilized to reduce aberrations, and produce clear, and vibrant images

ADDITIONAL SAMYANG CINE VDSLR MK2 LENS FEATURES

  • A new compact and sleek design with a matte black finish
  • Rounded nine blade apertures that deliver even smoother circular bokeh
  • Enhanced lens markings with focal lengths visible from the sides of the lens
  • Two year warranty
  • Available in Canon RF mount
  • The focusing gear is designed wider and feels more comfortable when gripped for focus pulling by hand
  • Weather sealed lens mounts protect the most vulnerable gap between the lens and camera mount

    User Manual Download

    Specifications

    Product24mm T1.5 VDSLR MK II
    Maximum T-StopT1.5
    Optical Construction13 Elements in 12 Groups
    Negative Size24 x 36 mm
    Angle of ViewFull Frame (1:1x)84.1°
    Super 3565.3°
    APS-C (1:1.5x)61.3°
    APS-C (1:1.6x)58.0°
    MFT (1:2x)47.6°
    Minimum Focusing Distance (∞ ~)0.25m0.82 ft.
    Filter Size (mm)77mm
    Diaphragm Blades9
    AngleFocus Angle139°
    Aperture Angle 48°
    Weather SealingNikon FNo
    OthersYes
    SizeCanon EF84.0 x 97.1 mm3.31 x 3.82 in
    Sony E84.0 x 123.1 mm3.31 x 4.85 in
    Canon RF84.0 x 121.1 mm3.31 x 4.77 in
    MFT84.0 x 121.9 mm3.31 x 4.80 in
    WeightCanon EF597.8 g1.32 lbs.
    Sony E649.0g1.43 lbs.
    Canon RF662.6 g1.46 lbs.
    MFT636.0 g1.40 lbs.

    MTF Chart

    Optical Construction

    Features

    Cinematic Video Quality, Covering Full Frame Sensor Size

    In contrast to their compact size, the VDSLR MK2 lenses cover full frame sensors (36x24mm) and are ready for the high-quality video making environment. This new series inherits the outstanding image quality of previous series: All 5 lenses have aspherical lens elements to reduce spherical and optical aberration, producing clear and vibrant images. The 50mm model also has a hybrid aspherical lens element to maintain compact size, without compromising performance.

    Compact Size with Long Focus Throw and De-Clicked Aperture Ring

    The compact size of Samyang's VDSLR MK2 lenses makes them perfect for hand-held and gimbal shooting. The long focus throw of over 130° enables cinematographers to focus precisely and exactly on their subjects, creating a more professional feel to video footage than with autofocus photo lenses.

    Fast T1.5 for Low-Light Situations

    For independent filmmakers, a versatile lens saves time and budget. The Samyang VDSLR MK2 series has fast T1.5 apertures across 4 focal lengths, supporting filmmakers and allowing them to concentrate more on the scene and creativity, without having to concern themselves about image quality, even in low-light situations. Also, the shallow depth of field available blurs out the background and highlights the subject, adding depth to the story.

    9 Aperture Blades for Exceptional Bokeh and Starburst Effect

    The new VDSLR MK2 series has been updated with 9 aperture blades and is able to deliver the latest image trends. The smooth and circular bokeh adds a three dimensional quality and pleasing out-of-focus effect. 18-ray starburst highlights can also be created by stopping down to small apertures.

    Weather Sealing

    As requested by many users, the VDSLR MK2 series now includes a weather-sealing feature. This protects the most vulnerable gap between the lens and camera mount, to prevent dust, light rain and snow from penetrating. It provides the ability to capture stunning images in less than perfect conditions.
    ※ Nikon F mount has no weather sealing

    Updated Design with Side Scales

    The Samyang VDSLR MK2 models have a sleek new design; black and matte finish boosts usability and professionalism on the set. They are lightweight but sturdy and fully equipped for numerous projects. The distance scales are readable from both sides, as are the focal lengths. These features support focus pullers and assistant cinematographers to operate more intuitively.
