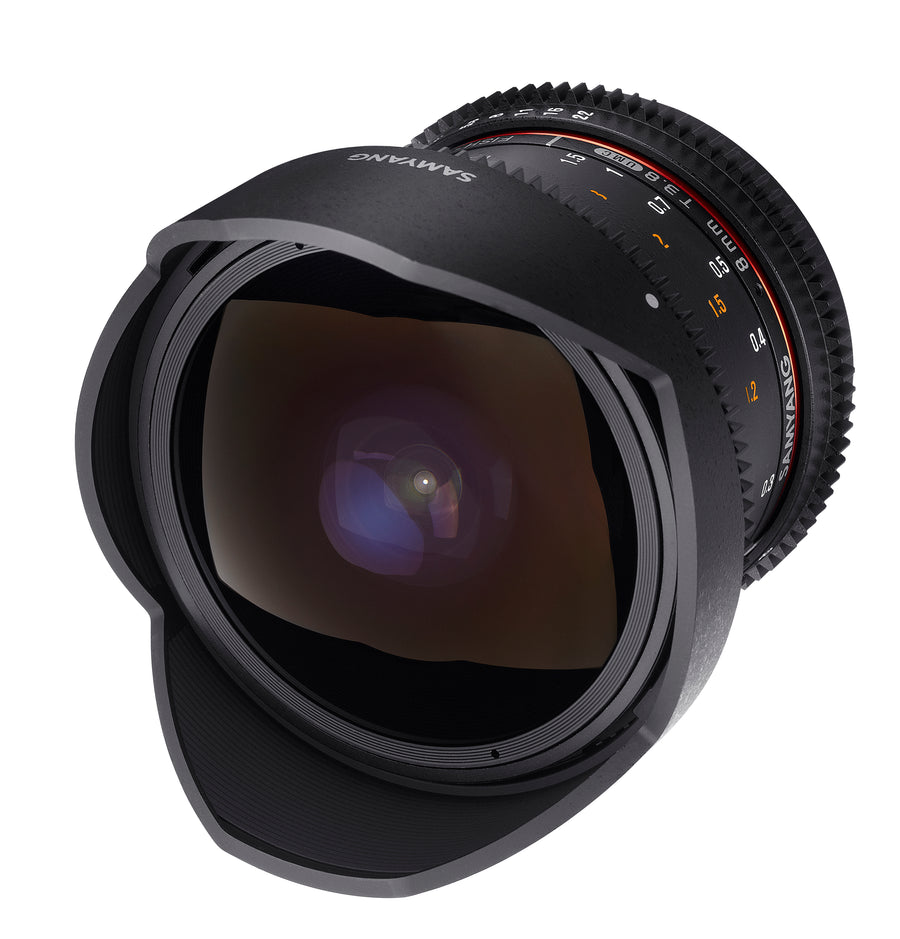

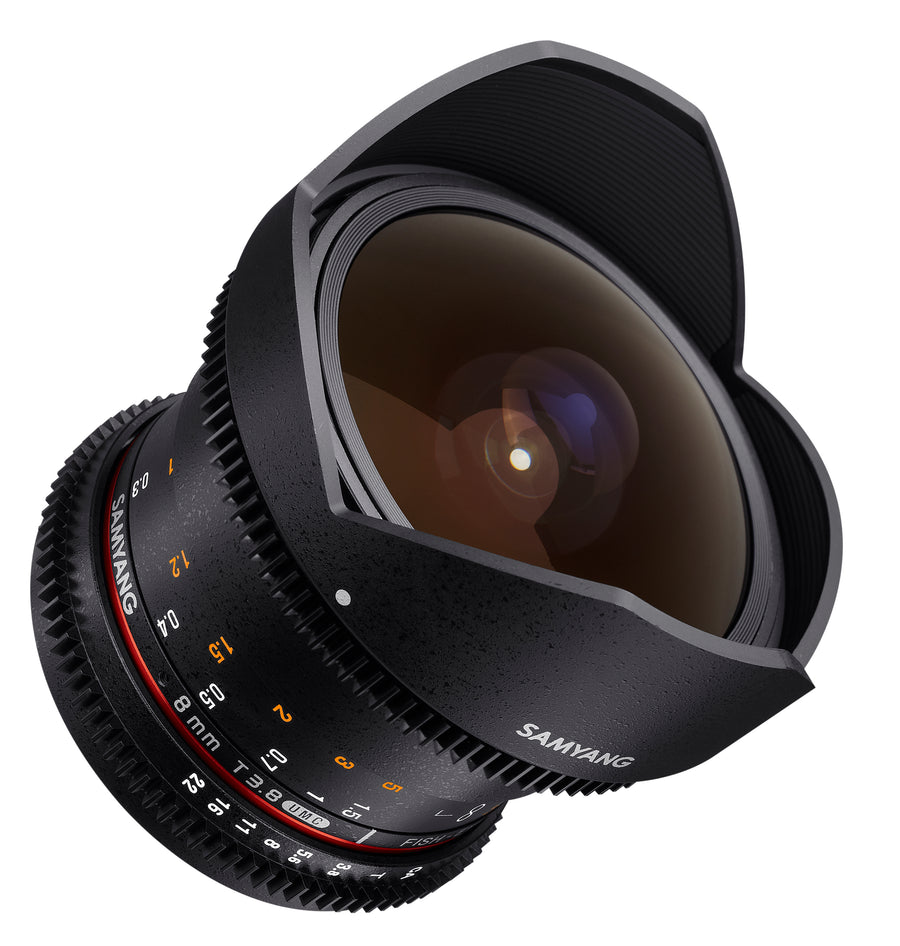

The Samyang 8mm T/3.8 Fish Eye HD Cine Lens is a Fisheye lens with a 180° field of view that features a use on cameras and camcorders with a Sony E Mount. This lens provides the signature fisheye distortion on full frame and APS-C sized sensors, without having to add additional optics or post production image processing that can severely degrade image quality. Designed for shooting HD video, it features a silent iris ring for smooth iris pulls and both the focus and iris rings have built-in gears to accommodate follow focus and iris motors. The lens features an internal focus design which keeps the front of the lens from turning as focus is changed.

The optical design consists of 10 elements in 7 groups with 1 aspherical element to deliver a crisp image with minimal chromatic aberrations across the imaging field. The lens has an aperture range of T3.8 to 22, and you can close focus down to 12 inches from the image plane. It features a removable Tulip shaped lens hood.

User Manual Download

Specifications 8mm T3.8 HD
Aperture Range T3.8 ~ T22
Optical
Construction
10 Elements in 7 Groups
(1 Hybrid Aspherical)
Minimum
Focusing Distance
0.3m (11.8")
Filter Size -
Maximum Diameter 75.0mm
Mount Nikon F Canon EF Sony E
Angle Of View ASP-C 180˚ 167˚ 180˚
Length (mm)
75.1mm 72.6mm 101.1mm
Weight (g) 430g 455g 465g
Gear Focus Ring Diameter 73.6mm
Aperture Ring Diameter 70.4mm 73.3mm

Model: SYHD8MV-C

UPC: 084438762075

Focal Length: 8mm

Maximum Aperture: T3.8

Coverage: APS-C/Four Thirds

Optical Construction: 10 Glass Elements In 7 Groups

Aperture Range: T3.8 to T22

Diaphragm Blades: 6

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 11.8" (0.3m)

Filter Size: n/a

Lens Hood: Removable Petal Shaped

Maximum Diameter: 2.95" (75mm)

Weight: 16.1oz (455g)

Length: 2.86" (72.6mm)

Model: SYHD8MV-N

UPC: 084438762082

Focal Length: 8mm

Maximum Aperture: T3.8

Coverage: APS-C/Four Thirds

Optical Construction: 10 Glass Elements In 7 Groups

Aperture Range: T3.8 to T22

Diaphragm Blades: 6

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 11.8" (0.3m)

Filter Size: n/a

Lens Hood: Removable Petal Shaped

Maximum Diameter: 2.95" (75mm)

Weight: 15.2oz (430g)

Length: 2.96" (75.1mm)

Model: SYHD8MV-NEX

UPC: 084438762099

Focal Length: 8mm

Maximum Aperture: T3.8

Coverage: APS-C/Four Thirds

Optical Construction: 10 Glass Elements In 7 Groups

Aperture Range: T3.8 to T22

Diaphragm Blades: 6

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 11.8" (0.3m)

Filter Size: n/a

Lens Hood: Removable Petal Shaped

Maximum Diameter: 2.95" (75mm)

Weight: 16.4oz (465g)

Length: 3.98" (101.1mm)

Specifications

Specifications 8mm T3.8 HD
Aperture Range T3.8 ~ T22
Optical
Construction
10 Elements in 7 Groups
(1 Hybrid Aspherical)
Minimum
Focusing Distance
0.3m (11.8")
Filter Size -
Maximum Diameter 75.0mm
Mount Nikon F Canon EF Sony E
Angle Of View ASP-C 180˚ 167˚ 180˚
Length (mm)
75.1mm 72.6mm 101.1mm
Weight (g) 430g 455g 465g
Gear Focus Ring Diameter 73.6mm
Aperture Ring Diameter 70.4mm 73.3mm

Canon EF

Model: SYHD8MV-C

UPC: 084438762075

Focal Length: 8mm

Maximum Aperture: T3.8

Coverage: APS-C/Four Thirds

Optical Construction: 10 Glass Elements In 7 Groups

Aperture Range: T3.8 to T22

Diaphragm Blades: 6

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 11.8" (0.3m)

Filter Size: n/a

Lens Hood: Removable Petal Shaped

Maximum Diameter: 2.95" (75mm)

Weight: 16.1oz (455g)

Length: 2.86" (72.6mm)

Nikon F

Model: SYHD8MV-N

UPC: 084438762082

Focal Length: 8mm

Maximum Aperture: T3.8

Coverage: APS-C/Four Thirds

Optical Construction: 10 Glass Elements In 7 Groups

Aperture Range: T3.8 to T22

Diaphragm Blades: 6

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 11.8" (0.3m)

Filter Size: n/a

Lens Hood: Removable Petal Shaped

Maximum Diameter: 2.95" (75mm)

Weight: 15.2oz (430g)

Length: 2.96" (75.1mm)

Sony E

Model: SYHD8MV-NEX

UPC: 084438762099

Focal Length: 8mm

Maximum Aperture: T3.8

Coverage: APS-C/Four Thirds

Optical Construction: 10 Glass Elements In 7 Groups

Aperture Range: T3.8 to T22

Diaphragm Blades: 6

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 11.8" (0.3m)

Filter Size: n/a

Lens Hood: Removable Petal Shaped

Maximum Diameter: 2.95" (75mm)

Weight: 16.4oz (465g)

Length: 3.98" (101.1mm)
