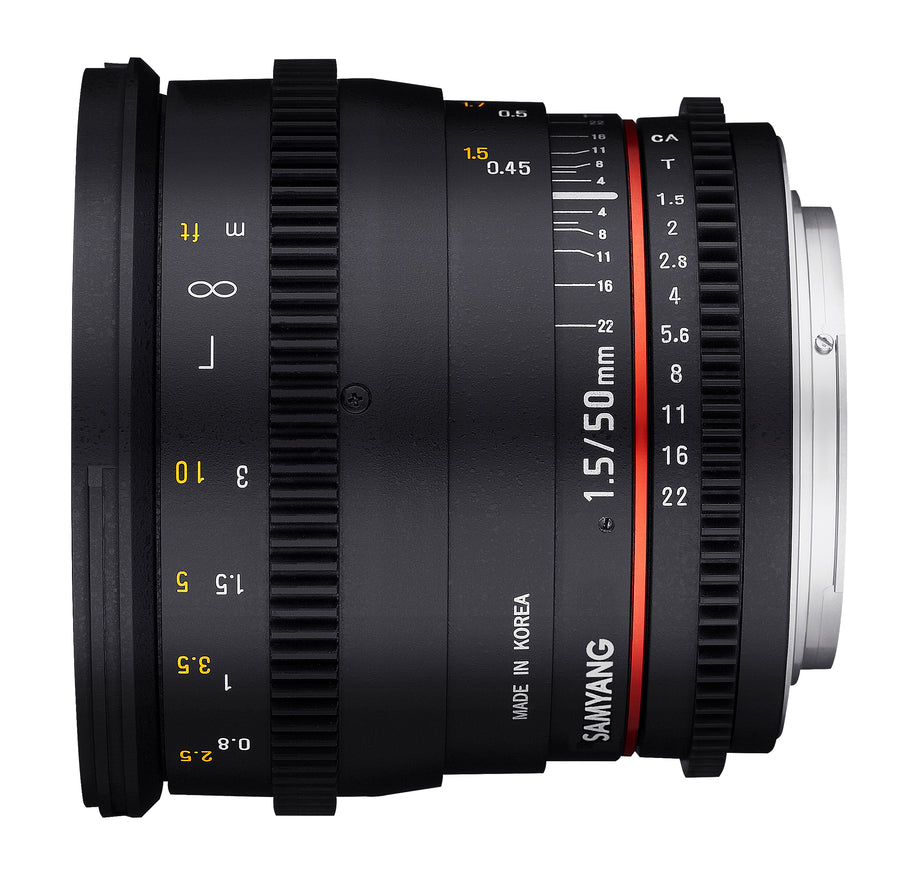

The Samyang 50mm T1.5 AS UMC Lens is a fast manual focus prime lens. It provides a very fast maximum aperture of T1.5 for effective low light capture and shallow depth of field control and an 8 blade iris for attractive bokeh. Optimized for cinema and video applications, the focus and aperture control rings are outfitted with industry standard gearing, which provides an interface for working with a traditional follow focus. The aperture control ring has also been de-clicked, which enables smooth iris pulls. In addition, bright aperture and distance markings are printed on the lens barrel facing laterally to facilitate easier control by a focus puller.

The 50mm has a minimum focus distance of 1.5'. Internal focusing minimizes the effects of lens breathing, which insures a more consistent angle-of-view when adjusting focus. The lens is composed of 9 elements in 6 groups, including one aspherical element and one hybrid aspherical element to reduce aberrations. In addition, a lens multi-coating helps to improve light transmission reducing flare and ghosting. The filter thread diameter is 77mm.

With this 50mm lens, Samyang introduces the DS series of cinema lenses, unifying their cine lenses in more than just name. Each of the DS branded lenses will offer the same alignment of their geared focus and aperture rings so that follow focus and other rig accessories won't need re-adjustment when swapping lenses. Also, each DS lens is tested to be color matched with the other lenses in the series and provide the same color and contrast when shooting video. Lastly, the lenses are marked with focusing scales on each side of the barrel for easier adjustment from either side of the camera.

  • Standard length manual focus prime lens for EF mount cameras.
  • Functional as still photo lens but optimized for cinema and video shooting with geared aperture and focus rings, de-clicked aperture for smooth exposure transitions and laterally printed aperture and distance markings.
  • Very fast T1.5 maximum aperture for effective low light capture and shallow depth of field.
  • Internal focusing system with 9 lens elements in 6 groups.
  • One aspherical and one hybrid aspherical lens element control aberrations and improve sharpness throughout the frame.
  • Lens multi-coating improves light transmission and reduces flare and ghosting.
  • Minimum focus distance of 1.5'
  • Filter thread diameter of 77mm

User Manual Download

Specifications T1.5 50mm AS UMC II
Aperture Range T1.5 ~ T22
Optical
Construction
9 ELEMENTS IN 6 GROUPS
(1 ASPHERICAL & 1 HYBRID LENS)
Minimum
Focusing Distance
0.45m (1.47ft)
Filter Size 77.0mm
Maximum Diameter 81.6mm
Mount Nikon F Canon EF Sony E Micro 4/3
Angle Of View Full Frame
46.2˚ 46.2˚ 46.2˚ -
ASP-C 30.8˚ 29.0˚ 30.8˚ -
FOUR-THIRDS
4/3”
- - - 23.6˚
Length (mm)
72.2mm 74.7mm 100.7mm 99.5mm
Weight (g) 555g 575g 600g 590g
Gear Module 0.8mm
A 7mm
B 4mm
C 43.8mm
D 8mm 10.5mm 36.5mm 35.3mm
Focus Ring Diameter 81.6mm
Aperture Ring Diameter 70.4mm 73.6mm

Model: SYDS50M-C

UPC: 084438763423

Focal Length: 50mm

Maximum Aperture: T1.5

Coverage: Full Frame (FX)

Optical Construction: 9 Glass Elements In 6 Groups

Aperture Range: T1.5 to T22

Diaphragm Blades: 8

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 17.7” (0.45m)

Filter Size: 77mm

Lens Hood: Removable Petal Shaped

Maximum Diameter: 3.21” (81.6mm)

Weight: 20.3oz (575g)

Length: 2.94” (74.7mm)

Model: SYDS50M-N

UPC: 084438763430

Focal Length: 50mm

Maximum Aperture: T1.5

Coverage: Full Frame (FX)

Optical Construction: 9 Glass Elements In 6 Groups

Aperture Range: T1.5 to T22

Diaphragm Blades: 8

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 17.7” (0.45m)

Filter Size: 77mm

Lens Hood: Removable Petal Shaped

Maximum Diameter: 3.21” (81.6mm)

Weight: 19.6oz (555g)

Length: 2.84” (72.2mm)

Model: SYDS50M-NEX

UPC: 084438763454

Focal Length: 50mm

Maximum Aperture: T1.5

Coverage: Full Frame (FX)

Optical Construction: 9 Glass Elements In 6 Groups

Aperture Range: T1.5 to T22

Diaphragm Blades: 8

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 17.7” (0.45m)

Filter Size: 77mm

Lens Hood: Removable Petal Shaped

Maximum Diameter: 3.21” (81.6mm)

Weight: 21.2oz (600g)

Length: 3.97” (100.7mm)

Model: SYDS50M-MFT

UPC: 084438763461

Focal Length: 50mm

Maximum Aperture: T1.5

Coverage: Full Frame (FX)

Optical Construction: 9 Glass Elements In 6 Groups

Aperture Range: T1.5 to T22

Diaphragm Blades: 8

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 17.7” (0.45m)

Filter Size: 77mm

Lens Hood: Removable Petal Shaped

Maximum Diameter: 3.21” (81.6mm)

Weight: 20.8oz (590g)

Length: 3.92” (99.5mm)

Specifications

Specifications T1.5 50mm AS UMC II
Aperture Range T1.5 ~ T22
Optical
Construction
9 ELEMENTS IN 6 GROUPS
(1 ASPHERICAL & 1 HYBRID LENS)
Minimum
Focusing Distance
0.45m (1.47ft)
Filter Size 77.0mm
Maximum Diameter 81.6mm
Mount Nikon F Canon EF Sony E Micro 4/3
Angle Of View Full Frame
46.2˚ 46.2˚ 46.2˚ -
ASP-C 30.8˚ 29.0˚ 30.8˚ -
FOUR-THIRDS
4/3”
- - - 23.6˚
Length (mm)
72.2mm 74.7mm 100.7mm 99.5mm
Weight (g) 555g 575g 600g 590g
Gear Module 0.8mm
A 7mm
B 4mm
C 43.8mm
D 8mm 10.5mm 36.5mm 35.3mm
Focus Ring Diameter 81.6mm
Aperture Ring Diameter 70.4mm 73.6mm

Canon EF

Model: SYDS50M-C

UPC: 084438763423

Focal Length: 50mm

Maximum Aperture: T1.5

Coverage: Full Frame (FX)

Optical Construction: 9 Glass Elements In 6 Groups

Aperture Range: T1.5 to T22

Diaphragm Blades: 8

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 17.7” (0.45m)

Filter Size: 77mm

Lens Hood: Removable Petal Shaped

Maximum Diameter: 3.21” (81.6mm)

Weight: 20.3oz (575g)

Length: 2.94” (74.7mm)

Nikon F

Model: SYDS50M-N

UPC: 084438763430

Focal Length: 50mm

Maximum Aperture: T1.5

Coverage: Full Frame (FX)

Optical Construction: 9 Glass Elements In 6 Groups

Aperture Range: T1.5 to T22

Diaphragm Blades: 8

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 17.7” (0.45m)

Filter Size: 77mm

Lens Hood: Removable Petal Shaped

Maximum Diameter: 3.21” (81.6mm)

Weight: 19.6oz (555g)

Length: 2.84” (72.2mm)

Sony E

Model: SYDS50M-NEX

UPC: 084438763454

Focal Length: 50mm

Maximum Aperture: T1.5

Coverage: Full Frame (FX)

Optical Construction: 9 Glass Elements In 6 Groups

Aperture Range: T1.5 to T22

Diaphragm Blades: 8

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 17.7” (0.45m)

Filter Size: 77mm

Lens Hood: Removable Petal Shaped

Maximum Diameter: 3.21” (81.6mm)

Weight: 21.2oz (600g)

Length: 3.97” (100.7mm)

Micro 4/3

Model: SYDS50M-MFT

UPC: 084438763461

Focal Length: 50mm

Maximum Aperture: T1.5

Coverage: Full Frame (FX)

Optical Construction: 9 Glass Elements In 6 Groups

Aperture Range: T1.5 to T22

Diaphragm Blades: 8

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 17.7” (0.45m)

Filter Size: 77mm

Lens Hood: Removable Petal Shaped

Maximum Diameter: 3.21” (81.6mm)

Weight: 20.8oz (590g)

Length: 3.92” (99.5mm)
