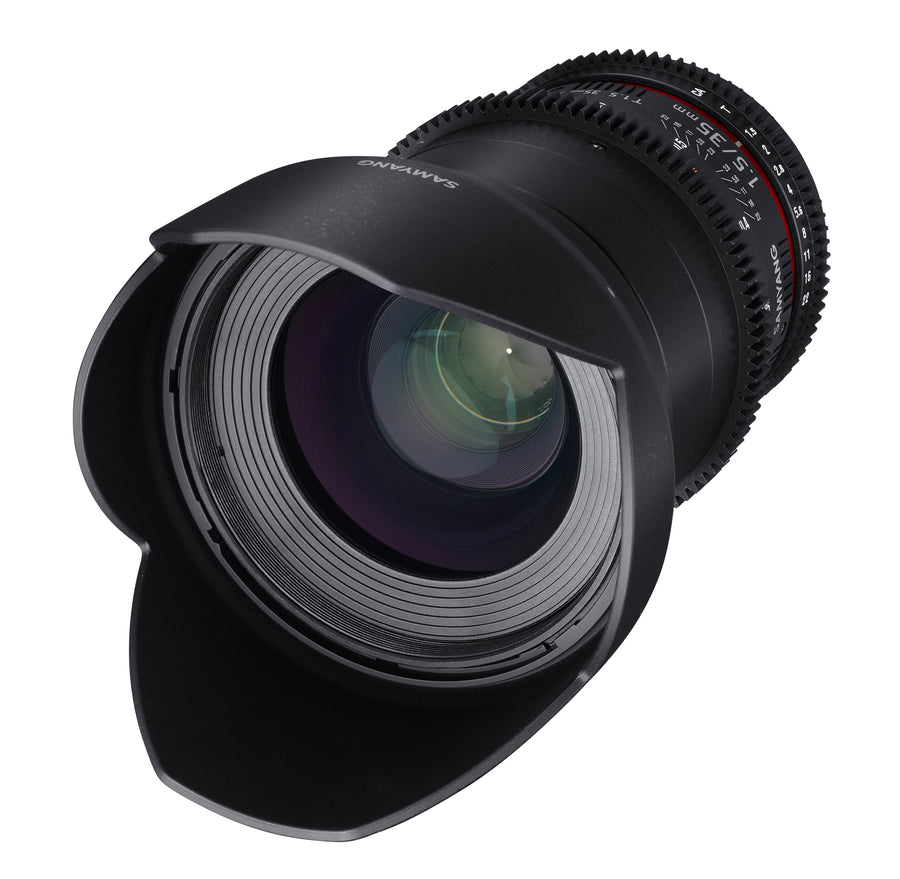

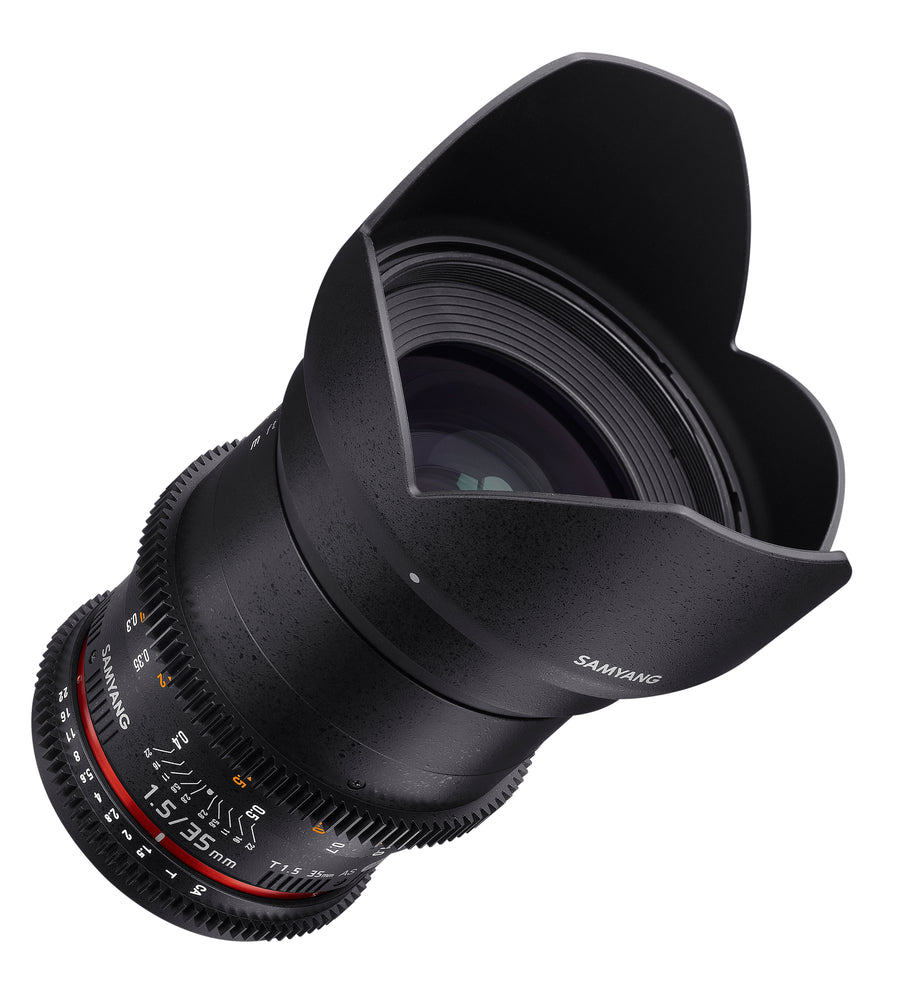

The Samyang 35mm T1.5 VDSLR AS UMC II Lens was developed primarily for film and video applications. The cine version of Rokinon's 35mm lens features industry-standard gearing for the focus and aperture ring, and the aperture ring has been de-clicked for smooth iris pulls. The aperture and focus scales have also been relocated to the side of the lens, where it is easier for focus pullers to read them.

This lens is compatible with full-frame sensors and can also be used on APS-C-sized sensors, where the 35mm-equivalent focal length will be 56mm. The optical construction incorporates two high refractive index elements and one aspherical element to reduce chromatic aberrations and distortion to produce sharper imagery. Additionally, a UMC coating has been applied to lens elements to minimize lens flare and ghosting for more contrast-rich images.

  • Wide-angle prime lens is well-suited to use in a broad variety of shooting situations.
  • Fast T1.5 maximum aperture benefits working in low-light conditions and provides greater control over focus placement for shallow depth of field applications.
  • Two high refractive index elements and one aspherical element reduce chromatic aberrations in order to produce greater sharpness and clarity.
  • UMC coating improves light transmission and suppresses lens flare and ghosting for more contrast-rich, color-neutral images.
  • Geared aperture and focus rings are compatible with standard follow focuses for greater control over adjustment.
  • De-clicked aperture ring facilitates smooth, quiet exposure adjustments during recording.

User Manual Download

Specifications 35mm T1.5
Aperture Range T1.5 ~ 22
Optical
Construction
12 ELEMENTS IN 10 GROUPS
(1 Aspherical, 1 High Refractive Index)
Number of Blades 8
Minimum
Focusing Distance
0.3m (12")
Filter Size 77mm
Maximum Diameter 83mm
Mount Nikon F Canon EF Sony E Micro 4/3
Angle Of View Full Frame 63.1˚ 63.1˚ 63.1˚ -
ASP-C 43.2˚ 40.8˚ 43.2˚ -
FOUR-THIRDS
4/3”
- - - 33.4˚
Length (mm) 109mm 111.5mm 137.5mm 136.3mm
Weight (g) 685g 700g 720g 770g
Gear Module 0.8mm
A 7mm
B 4mm
C 43.8mm
D 8mm 10.5mm 36.5mm 35.3mm
Focus Ring Diameter 81.6mm
Aperture Ring Diameter 70.4mm 73.6mm

Model: SYDS35M-C

UPC: 084438763577

Focal Length: 35mm

Maximum Aperture: T1.5

Coverage: Full Frame (FX)

Optical Construction: 12 Glass Elements In 10 Groups

Aperture Range: T1.5 to T22

Diaphragm Blades: 8

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 12 ” (0.3m)

Filter Size: 77mm

Lens Hood: Removable Petal Shaped

Maximum Diameter: 3.27”(83mm)

Weight: 24.7oz (700g)

Length: 4.38” (111.5mm)

Model: SYDS35M-N

UPC: 084438763584

Focal Length: 35mm

Maximum Aperture: T1.5

Coverage: Full Frame (FX)

Optical Construction: 12 Glass Elements In 10 Groups

Aperture Range: T1.5 to T22

Diaphragm Blades: 8

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 12 ” (0.3m)

Filter Size: 77mm

Lens Hood: Removable Petal Shaped

Maximum Diameter: 3.27”(83mm)

Weight: 24.2oz (685g)

Length: 4.29” (109mm)

Model: SYDS35M-NEX

UPC: 084438763607

Focal Length: 35mm

Maximum Aperture: T1.5

Coverage: Full Frame (FX)

Optical Construction: 12 Glass Elements In 10 Groups

Aperture Range: T1.5 to T22

Diaphragm Blades: 8

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 12 ” (0.3m)

Filter Size: 77mm

Lens Hood: Removable Petal Shaped

Maximum Diameter: 3.27”(83mm)

Weight: 25.4oz (720g)

Length: 5.41” (137.5mm)

Model: SYDS35M-MFT

UPC: 084438763614

Focal Length: 35mm

Maximum Aperture: T1.5

Coverage: Full Frame (FX)

Optical Construction: 12 Glass Elements In 10 Groups

Aperture Range: T1.5 to T22

Diaphragm Blades: 8

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 12 ” (0.3m)

Filter Size: 77mm

Lens Hood: Removable Petal Shaped

Maximum Diameter: 3.27”(83mm)

Weight: 27.2oz (770g)

Length: 5.36” (136.3mm)

Specifications

Specifications 35mm T1.5
Aperture Range T1.5 ~ 22
Optical
Construction
12 ELEMENTS IN 10 GROUPS
(1 Aspherical, 1 High Refractive Index)
Number of Blades 8
Minimum
Focusing Distance
0.3m (12")
Filter Size 77mm
Maximum Diameter 83mm
Mount Nikon F Canon EF Sony E Micro 4/3
Angle Of View Full Frame 63.1˚ 63.1˚ 63.1˚ -
ASP-C 43.2˚ 40.8˚ 43.2˚ -
FOUR-THIRDS
4/3”
- - - 33.4˚
Length (mm) 109mm 111.5mm 137.5mm 136.3mm
Weight (g) 685g 700g 720g 770g
Gear Module 0.8mm
A 7mm
B 4mm
C 43.8mm
D 8mm 10.5mm 36.5mm 35.3mm
Focus Ring Diameter 81.6mm
Aperture Ring Diameter 70.4mm 73.6mm

Canon EF

Model: SYDS35M-C

UPC: 084438763577

Focal Length: 35mm

Maximum Aperture: T1.5

Coverage: Full Frame (FX)

Optical Construction: 12 Glass Elements In 10 Groups

Aperture Range: T1.5 to T22

Diaphragm Blades: 8

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 12 ” (0.3m)

Filter Size: 77mm

Lens Hood: Removable Petal Shaped

Maximum Diameter: 3.27”(83mm)

Weight: 24.7oz (700g)

Length: 4.38” (111.5mm)

Nikon F

Model: SYDS35M-N

UPC: 084438763584

Focal Length: 35mm

Maximum Aperture: T1.5

Coverage: Full Frame (FX)

Optical Construction: 12 Glass Elements In 10 Groups

Aperture Range: T1.5 to T22

Diaphragm Blades: 8

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 12 ” (0.3m)

Filter Size: 77mm

Lens Hood: Removable Petal Shaped

Maximum Diameter: 3.27”(83mm)

Weight: 24.2oz (685g)

Length: 4.29” (109mm)

Sony E

Model: SYDS35M-NEX

UPC: 084438763607

Focal Length: 35mm

Maximum Aperture: T1.5

Coverage: Full Frame (FX)

Optical Construction: 12 Glass Elements In 10 Groups

Aperture Range: T1.5 to T22

Diaphragm Blades: 8

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 12 ” (0.3m)

Filter Size: 77mm

Lens Hood: Removable Petal Shaped

Maximum Diameter: 3.27”(83mm)

Weight: 25.4oz (720g)

Length: 5.41” (137.5mm)

Micro 4/3

Model: SYDS35M-MFT

UPC: 084438763614

Focal Length: 35mm

Maximum Aperture: T1.5

Coverage: Full Frame (FX)

Optical Construction: 12 Glass Elements In 10 Groups

Aperture Range: T1.5 to T22

Diaphragm Blades: 8

Coating: Ultra Multi-Coating

Minimum Focusing Distance: 12 ” (0.3m)

Filter Size: 77mm

Lens Hood: Removable Petal Shaped

Maximum Diameter: 3.27”(83mm)

Weight: 27.2oz (770g)

Length: 5.36” (136.3mm)
