XN35-C

Regular price$1,395.00
/
Shipping calculated at checkout.
Mount

Model: XN35-C

UPC: 0-84438-76512-0

Focal Length: 35mm

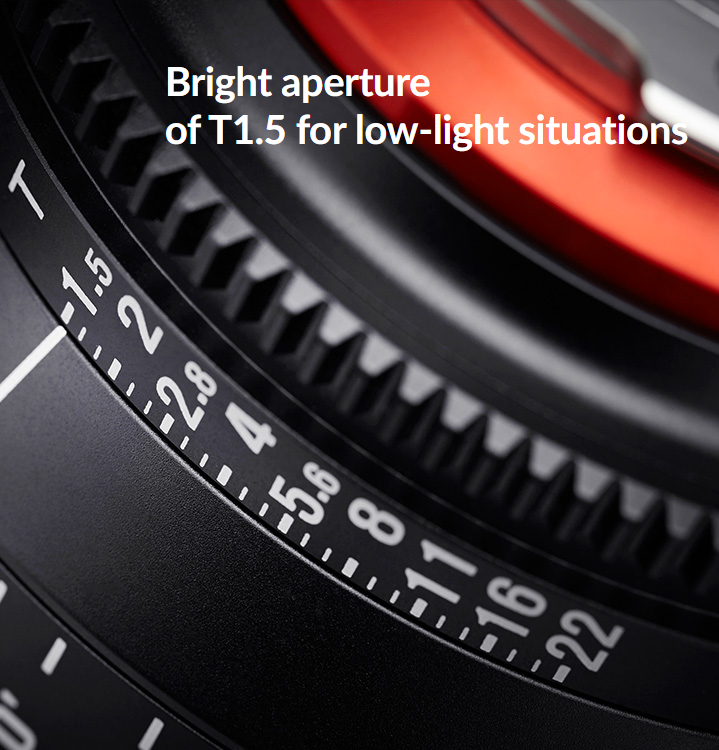

Maximum Aperture: T1.5

Coverage: Full Frame (FX)

Aperture Range: T1.5 to T22

Diaphragm Blades: 11

Coating: XEEN X-Coating Technology

Minimum Focusing Distance: 13" (33.0 cm)

Filter Size: 114mm Front Diameter sized for use with Standard 114mm Matte Boxes

Lens Hood: Built-In

Maximum Diameter: 4.6" (117.6mm)

Weight: 48.50oz (1,375g)

Length: 4.80” (121.7mm)

Model: XN35-MFT

UPC: 0-84438-76513-7

Focal Length: 35mm

Maximum Aperture: T1.5

Coverage: Full Frame (FX)

Aperture Range: T1.5 to T22

Diaphragm Blades: 11

Coating: XEEN X-Coating Technology

Minimum Focusing Distance: 13" (33.0 cm)

Filter Size: 114mm Front Diameter sized for use with Standard 114mm Matte Boxes

Lens Hood: Built-In

Maximum Diameter: 4.6" (117.6mm)

Weight: 41.80oz (1,185g)

Length: 5.77” (146.5mm)

Model: XN35-N

UPC: 0-84438-76514-4

Focal Length: 35mm

Maximum Aperture: T1.5

Coverage: Full Frame (FX)

Aperture Range: T1.5 to T22

Diaphragm Blades: 11

Coating: XEEN X-Coating Technology

Minimum Focusing Distance: 13" (33.0 cm)

Filter Size: 114mm Front Diameter sized for use with Standard 114mm Matte Boxes

Lens Hood: Built-In

Maximum Diameter: 4.6" (117.6mm)

Weight: 46.56oz (1,320g)

Length: 4.70” (119.2mm)

Model: XN35-PL

UPC: 0-84438-76516-8

Focal Length: 35mm

Maximum Aperture: T1.5

Coverage: Full Frame (FX)

Aperture Range: T1.5 to T22

Diaphragm Blades: 11

Coating: XEEN X-Coating Technology

Minimum Focusing Distance: 13" (33.0 cm)

Filter Size: 114mm Front Diameter sized for use with Standard 114mm Matte Boxes

Lens Hood: Built-In

Maximum Diameter: 4.6" (117.6mm)

Weight: 47.98oz (1,360g)

Length: 4.48” (113.7mm)

Model: XN35-NEX

UPC: 0-84438-76515-1

Focal Length: 35mm

Maximum Aperture: T1.5

Coverage: Full Frame (FX)

Aperture Range: T1.5 to T22

Diaphragm Blades: 11

Coating: XEEN X-Coating Technology

Minimum Focusing Distance: 13" (33.0 cm)

Filter Size: 114mm Front Diameter sized for use with Standard 114mm Matte Boxes

Lens Hood: Built-In

Maximum Diameter: 4.6" (117.6mm)

Weight: 41.10oz (1,165g)

Length: 5.82” (147.7mm)

Samyang's XEEN 35mm T1.5 Lens is built specifically for use as a cinema lens. It features an internal focus design so that the lens does not change size while focusing, minimizing the appearance of breathing when changing focus. Each lens in the set is multi-coated for good contrast, glare prevention, and color match to a factory standard, allowing you to assemble a set over time with minimal color shift. This 35mm lens provides what is considered a somewhat wide angle of view on full-frame cameras, and a tighter angle of view on smaller formats.

The lens features dual-sided focus scales marked in feet, with dual-sided iris scales. The 11-bladed iris provides a rounded aperture for natural looking highlights and bokeh. The lens is a manual focus and iris lens, and does not have auto focus or auto iris capability. It incorporates cinema-style focus and iris gears that share the same position across the lenses in the XEEN set. The common 114mm front diameter allows for quick lens changes when using a matte box and focus accessories. The focus ring rotates 200° from close focus to infinity. This gives you a high degree of precision when adjusting focus.

  • This 35mm lens has an image circle that covers a full-frame sensor

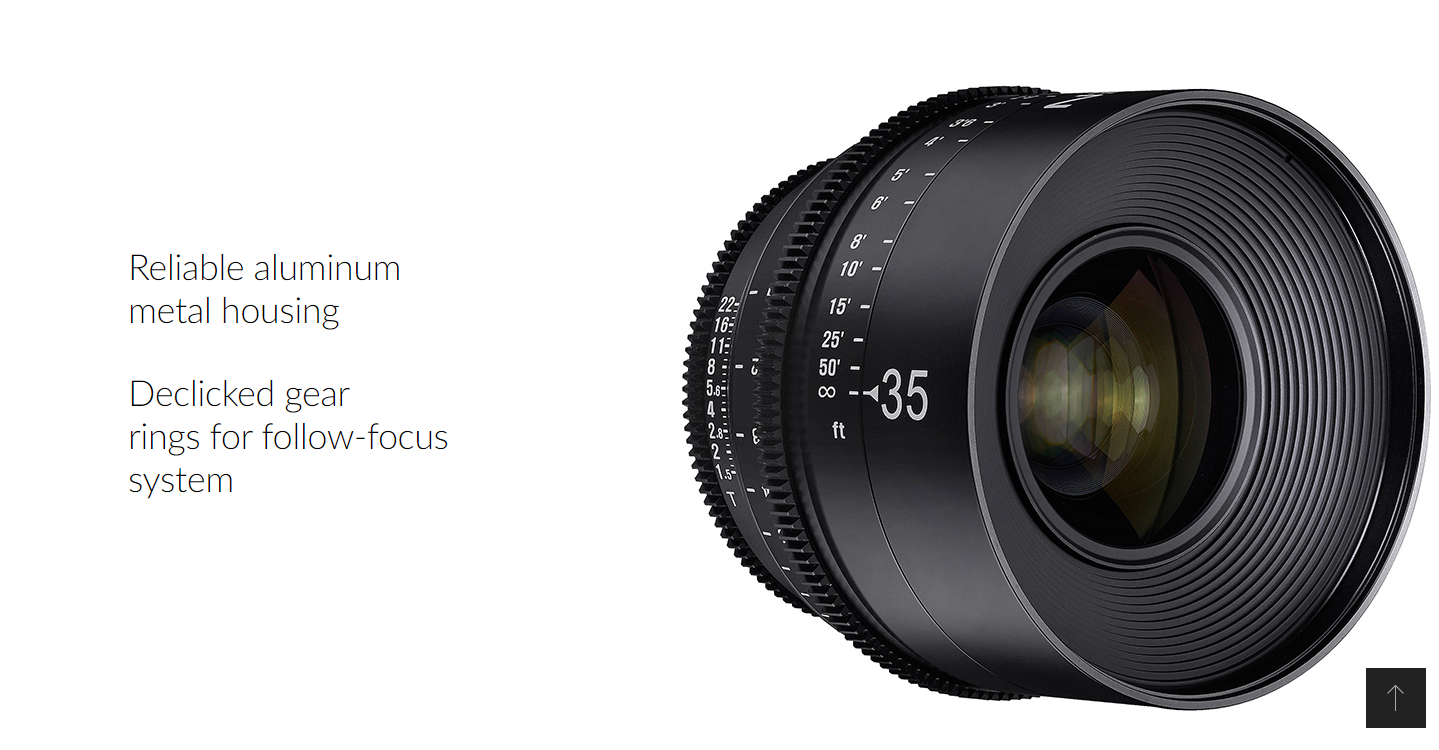

  • The lens features metal construction and it incorporates a support that can help take strain off your camera's lens port
  • Dual right and left side focus and t-stop scales allow your focus puller to work from either side of the lens
  • Each lens in the XEEN series share common focus and iris gear ring positions
  • The common 114mm front diameter allows for quick lens changes
  • The non-rotating front allows you to use optional clip-on matte boxes
  • De-clicked aperture ring for smooth iris pulls
  • A minimum focusing distance of 13" allows you to get up close to your subject

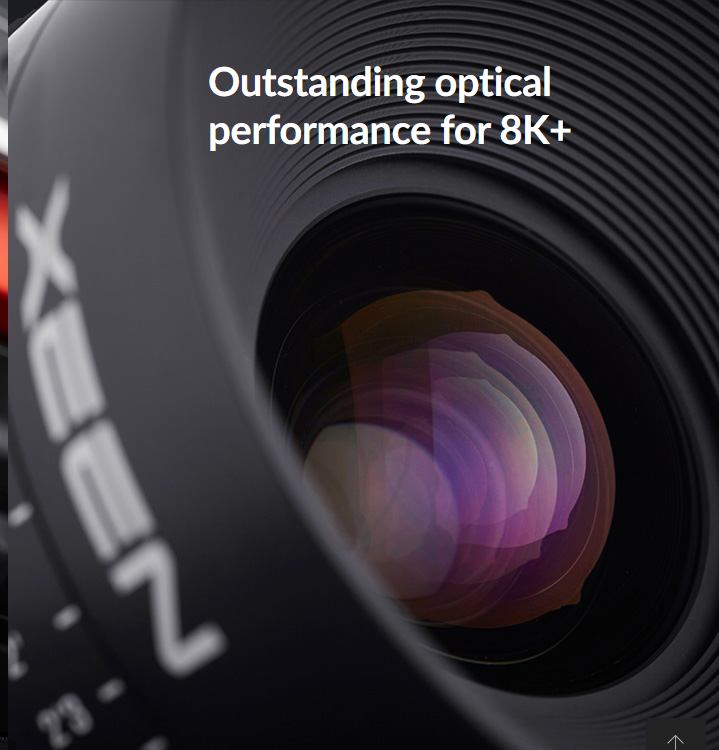

  • 6K Ready Optics
  • Full Frame Coverage
  • Tightly Color Matched
  • Unified 40° Iris Rotation
  • Unified 200° Focus Throw

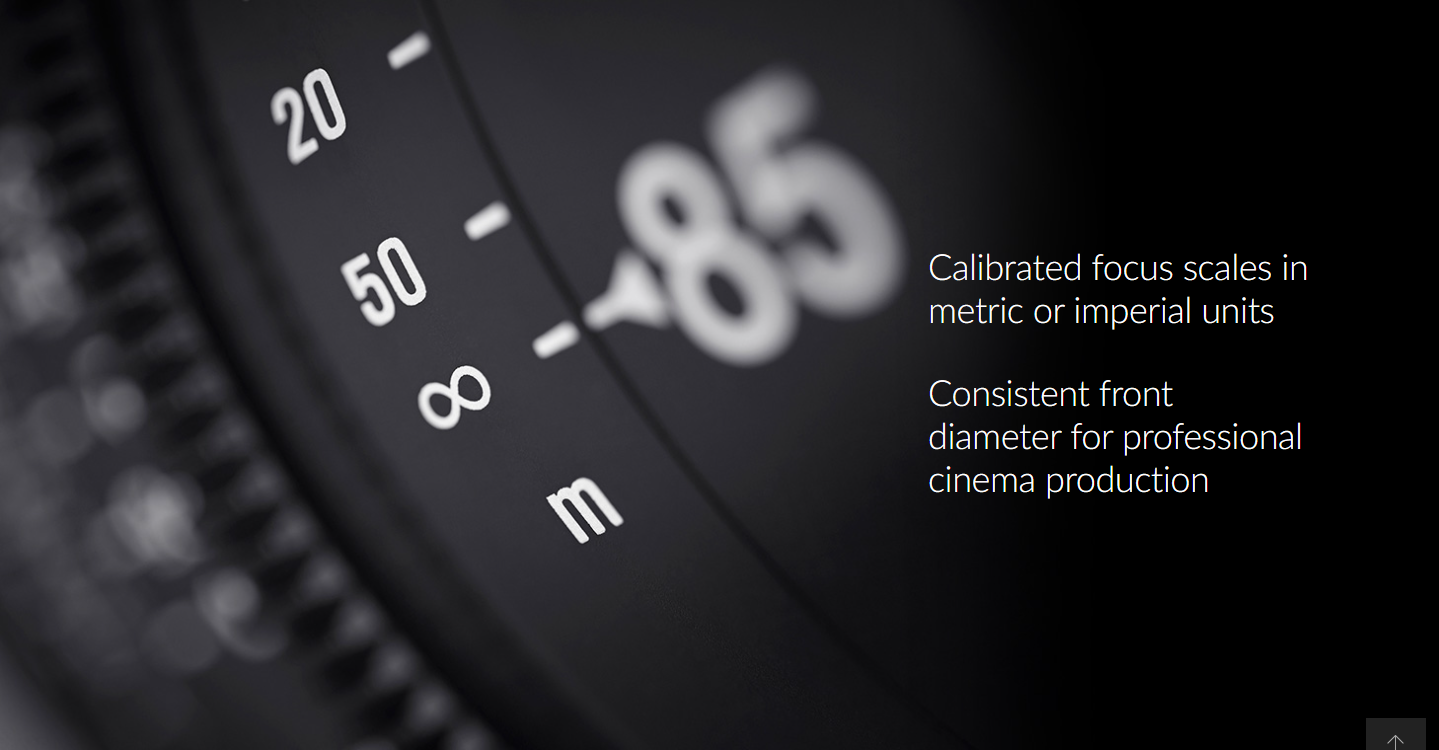

  • Large Easy To Read Markings
  • Three Year Limited Warranty
  • Lens Support Mount (Except PL)

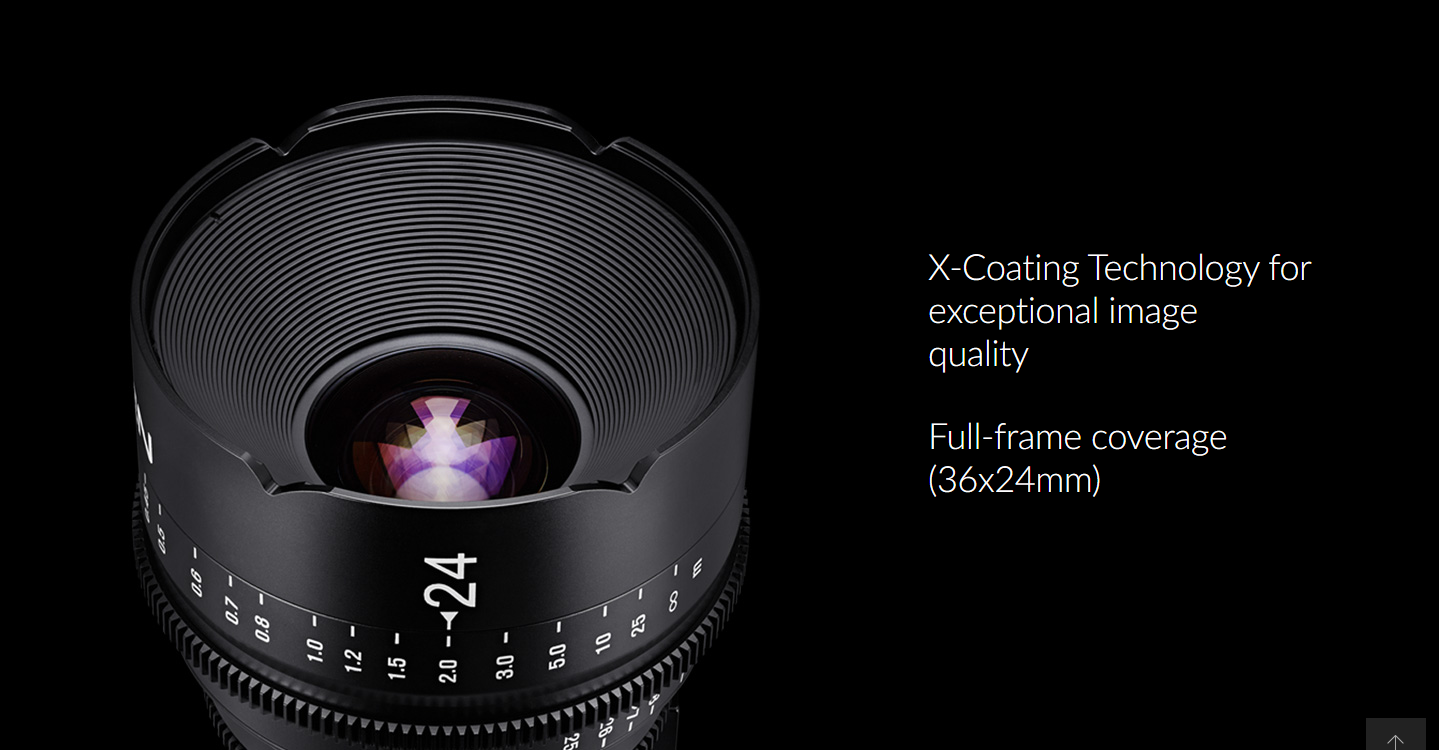

  • XEEN Proprietary X-Coating Technology
  • Unified 114mm Non-Rotating Front Diameters
  • 11 Bladed Diaphragm for Superb Bokeh

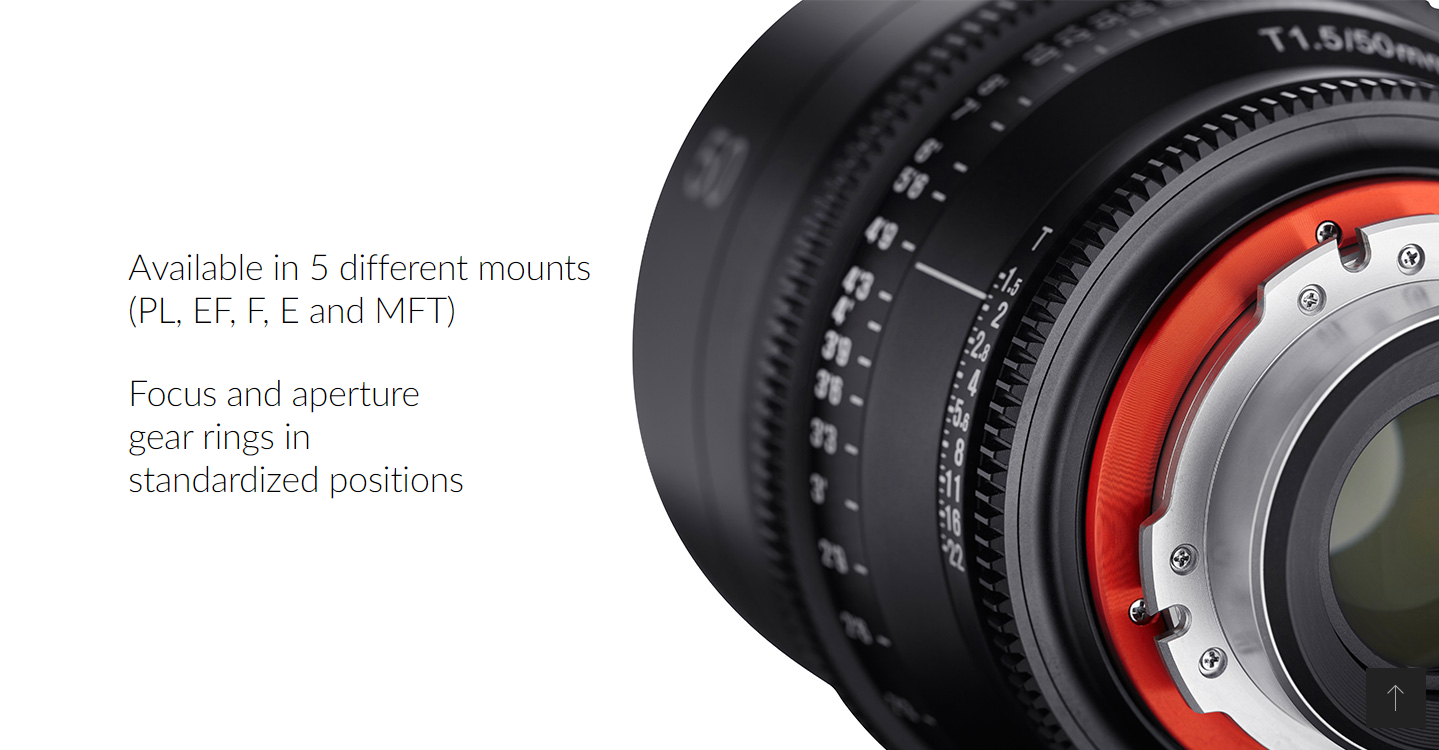

  • Unified Focus and Aperture Gear Positions for Easy Follow Focus Use
  • Mounts can be shimmed and are interchangeable by a qualified technician
  • Smooth and fully damped movement of focusing and aperture controls

User Manual Download

Specifications

Focal Length35mm
Maximum T-StopT1.5
Negative Size24 mm X 36 mm
Angle of ViewFull Frame (1:1x)63.1˚
Super 3546.9˚
APS-C (1:1.5x)43.1˚
APS-C (1:1.6x)41.5˚
MFT (1:2x)33.4˚
Focusing Range∞ to 0.33 m
Front SizeΦ114mm
Number of Blades11
SizePLΦ117.6mm x 113.7mm
Canon EFΦ117.6mm x 121.7mm
Nikon FΦ117.6mm x 119.2mm
Sony EΦ117.6mm x 147.7mm
MFTΦ117.6mm x 146.5mm
AngleFocus angle200°
Iris angle40°
Weight
(without Lens cap)
PL1,360g
Canon EF1,375g
Nikon F1,320g
Sony E1,380g
MFT1,380g
