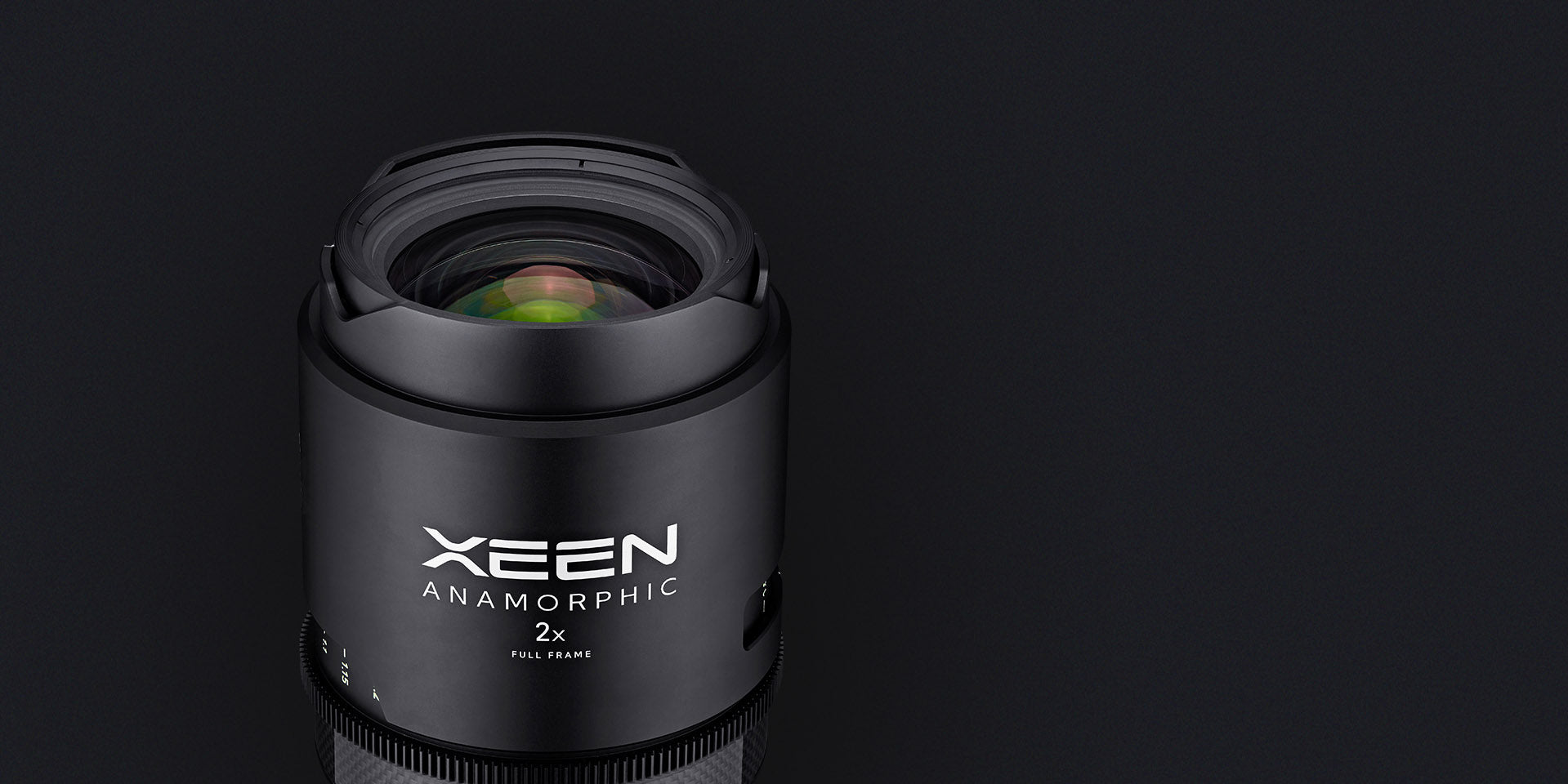

XEEN Anamorphic 50mm T2.3 2x for high-end digital cinematography
The XEEN Anamorphic 50mm T2.3 opens up endless new creative opportunities, making possible shots that would have previously been considered impossible. This new XEEN Anamorphic lens covers full-frame and larger sensors, is available in an interchangeable PL-mount.
The important and distinguishing visual facet of anamorphic images is the appearance of out-of-focus background elements or bokeh. The newly developed iris with 15 aperture blades, creates perfectly oval and evenly illuminated out-of-focus highlights. This ensures a pleasing bokeh that filmmakers will enjoy manipulating creatively. After being de-squeezed, the XEEN Anamorphic 50mm T2.3 lens covers 2,55:1 original cinematic cope ratio in 35mm full-frame sensor.
The XEEN Anamorphic 50mm T2.3 features a Ø114mm, non-rotating front diameter, which is ideal for use with a 4x5 Matte Box. Also, the front barrel design made of Carbon fiber material not only adds to the rigidity of the lens but also adds a sense of luxury. In addition, the ultra-bright luminous font allows for convenient use in dark environments.
Specifications
| Model Name | XEEN Anamorphic 50mm T2.3 | |
| Maximum T-Stop | T2.3 | |
| Image Circle | Ø 43.2mm | |
| Angle of View | Full Frame | H: 68.4˚, V: 26.9˚ |
| Super 35 | H: 50.0˚, V: 20.5˚ | |
| Focusing Range | ∞ to 1.0 m | |
| ∞ to 3.3 ft. | ||
| Front Diameter | Ø 114 mm | |
| Number of Aperture Blades | 15 | |
| Rotation Angle of Focus Ring | 300° | |
| Rotation Angle of Aperture Ring | 89.5° | |

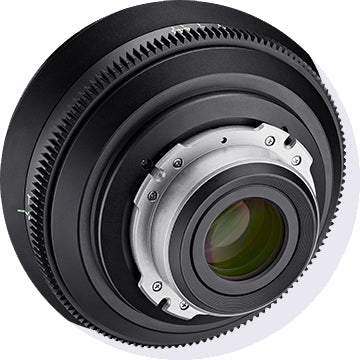

| Mount | PL | |
| Size | Ø128.0 x 198.6 mm | |
| Weight (without Lens cap) | 3.9 kg / 8.50 lbs. | |
| Squeeze Ratio | X2 | |
| Focus Drive Gear | 158 teeth 0.8 metric module x 8.0mm wide x 121mm from the image plane | |
| Iris Drive Gear | 136 teeth 0.8 metric module x 7.0mm wide x 75mm from image plane | |
Compatible with Full-Frame Sensor
Compatible with full-frame PL mount cameras. It offers excellent quality, high resolution, and excellent sharpness. It's suitable for 4K or UHD as well as 8K resolution cameras.
2X Anamorphic: Magnificent & Highly Immersive
After being de-squeezed, the XEEN Anamorphic 50mm T2.3 lens covers a 2.55:1 original cinematic cope ratio in a 35mm full-frame sensor in order to provide old films' own vintage look and a wider field of view and more attractive images from a horizontal angle of view.

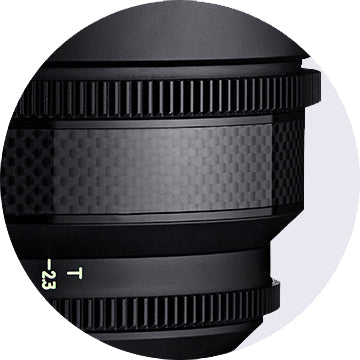

Carbon Fiber
By applying carbon fiber, which is lighter than metal but solid and beautiful, to the lens body tube, it remains lightweight while maintaining durability.
Outstanding Usability
Designed to 114mm standard front diameter size it is easily compatible with 4x5 Matte Box. All scales, including focal length and aperture values, are on both sides of the lens and with the luminous font that glows in the dark, enabling convenient verification and operation, even in low light environments. 300° wide focus gear rotation angle makes you adjust focus minutely.

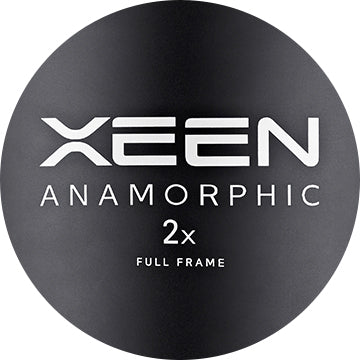

Squeeze Factor 2X
After being de-squeezed, the XEEN Anamorphic lens covers 2.55:1 original cinematic cope ratio in 35mm full-frame sensor, providing a wider field of view and old films' own vintage look
15 Aperture Blades
The newly developed iris with 15 aperture blades, creates perfectly oval and evenly illuminated out-of-focus highlights

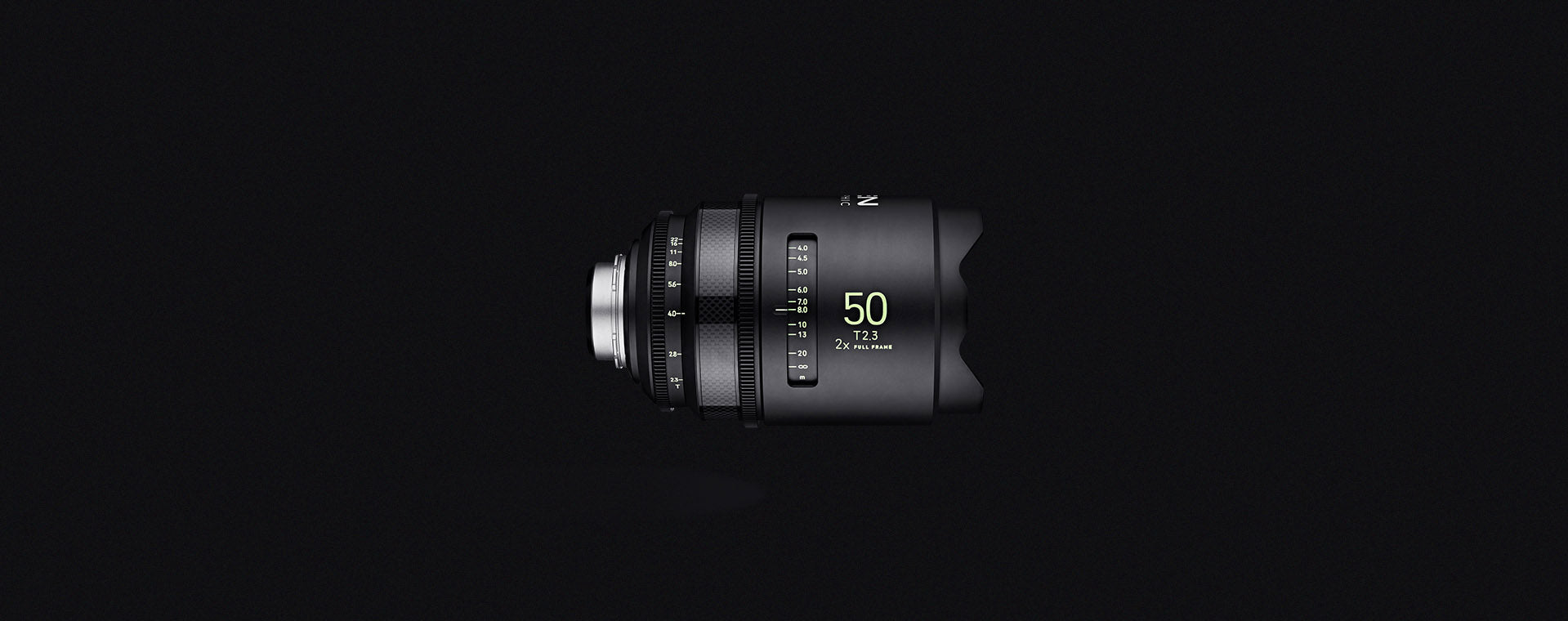

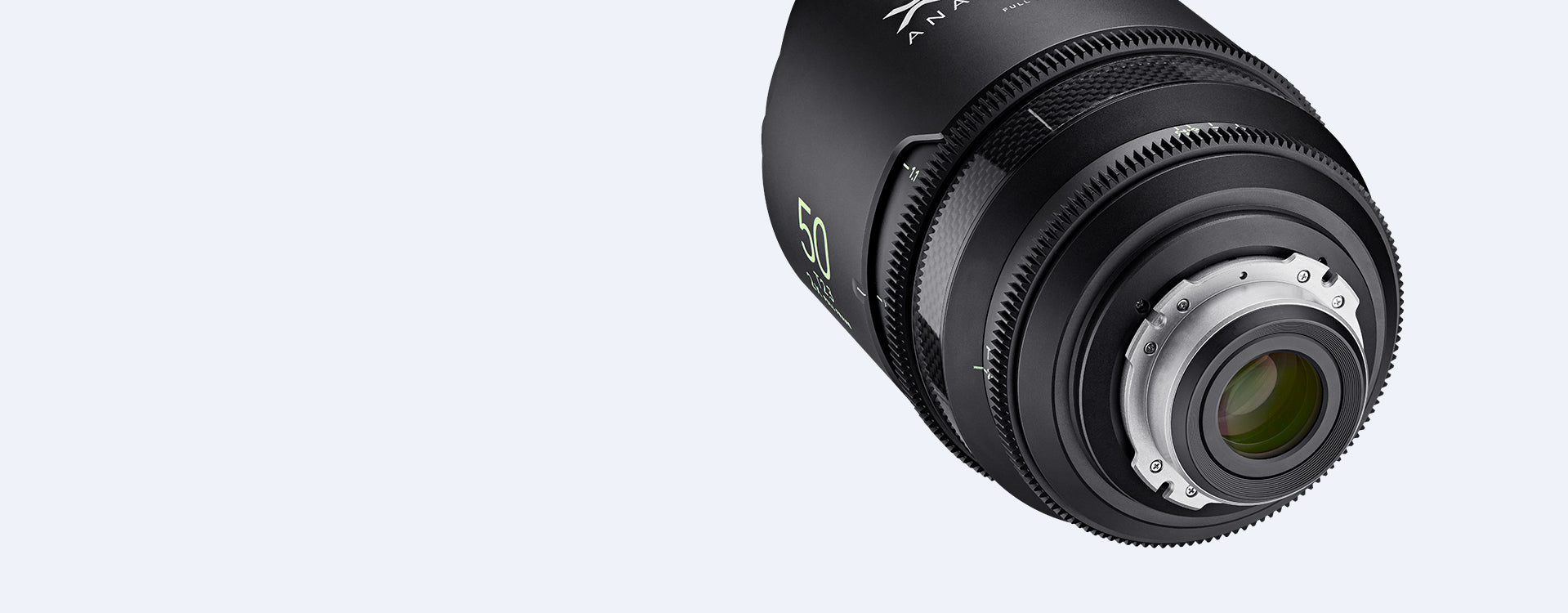

Compatible with Full Frame Sensor
Compatible with the latest PL mount cameras that adopt Full Frame sensor

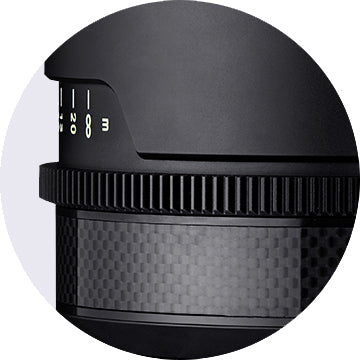

Carbon Fiber
Carbon fiber is applied to part of the body tube, making it both light and durable with a sense of luxury

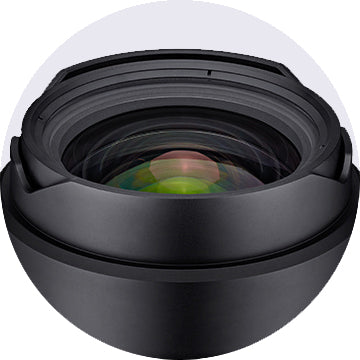

Ø114 Front Size
The XEEN Anamorphic features a Ø114mm, non-rotating front diameter, which is ideal for use with a 4x5 Matte Box

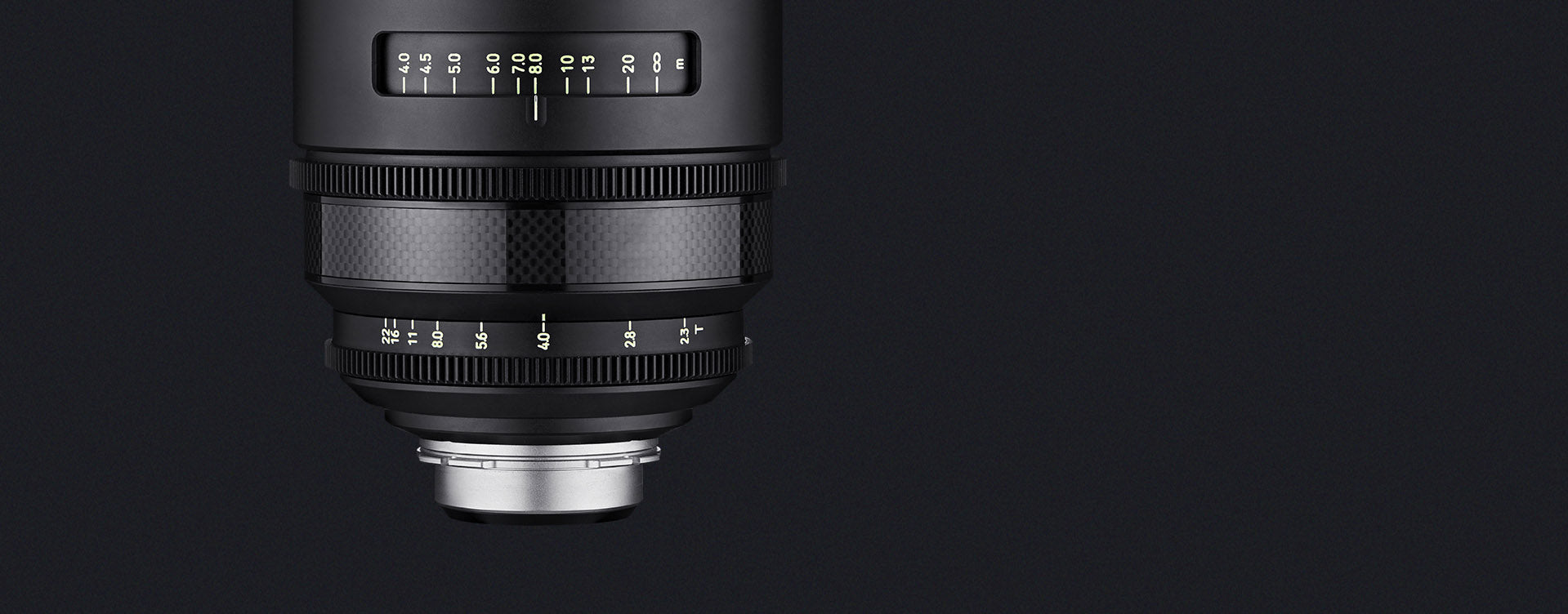

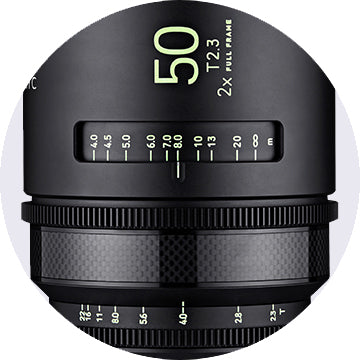

Luminous Font
All scales, including focal length and aperture values, are treated with bright fluorescent paint for convenient use, even in low light environments

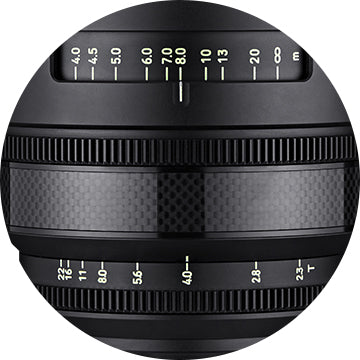

Bidirectional Scale
The focus and aperture values are displayed on both sides of the lens, enabling easy verification and operation from either side
Wide Focus Gear Rotation Angle
300° wide angle of rotation enables fine focus adjustment
